Benefits ThermoPROFILE


• Two-in-one design: rigid frame + thermal insulation in one element.

• Reduction of profile weight while maintaining strength.

• Elimination of the need for additional insulation layers.

• Compatibility with LSFS and modular construction.

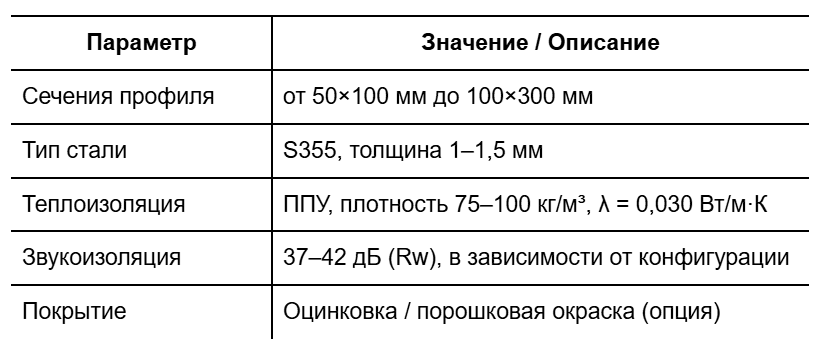

Technical specifications

Key features


Improved load-bearing capacity:

Profile rigidity increases due to internal PUR reinforcement, without increasing metal thickness.

• Thermal insulation:

Elimination of thermal bridges along the entire length of the profile thanks to a continuous thermal insulation layer.

• Sound insulation:

Reduction of airborne and impact noise through multi-layer (composite] construction.

• High-precision geometry:

ThermoPROFILE are manufactured with high precision, which facilitates their integration into modular, prefabricated and industrialized systems.

• Wide range of applications:

The profile is ideal for:

• forming window and door openings,

• interior partitions,

• facade substructures and curtain wall systems,

• frames for light cladding and thermal insulation assemblies.

High-efficiency thermally insulated structural profiles

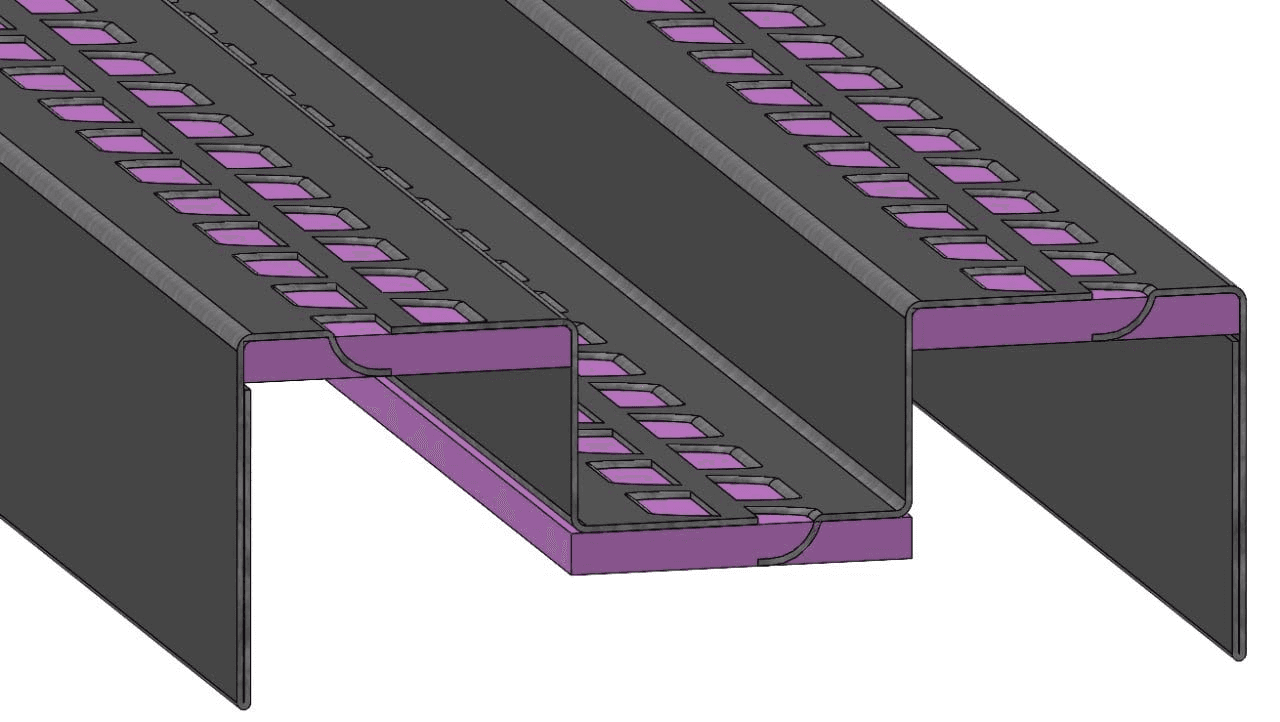

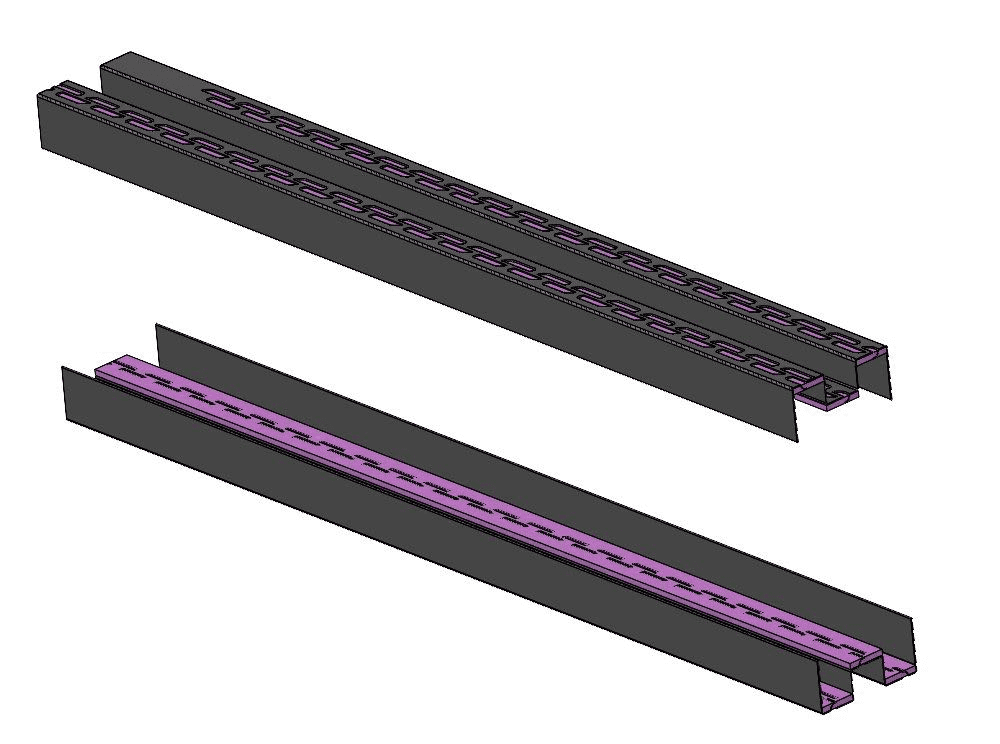

ThermoPROFILE — is an innovative metal profile developed to increase energy efficiency and rigidity of light steel frame (LSFS] structures. Unlike traditional cold-formed profiles, ThermoPROFILE is equipped with perforated side walls (in a staggered pattern, "louver" type], the internal cavity of which is filled with rigid polyurethane (PUR]. This structural solution increases the effective section modulus while maintaining lightness and minimal steel thickness.
