Integrated load-bearing and thermal insulation beam

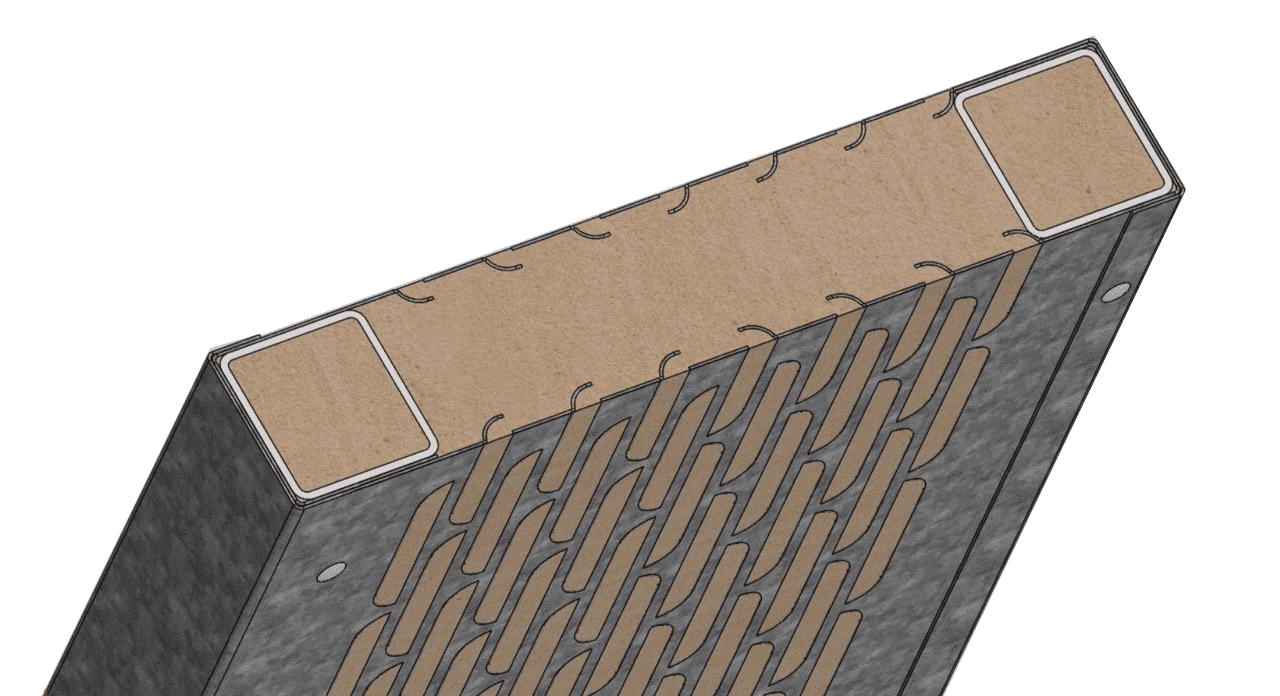

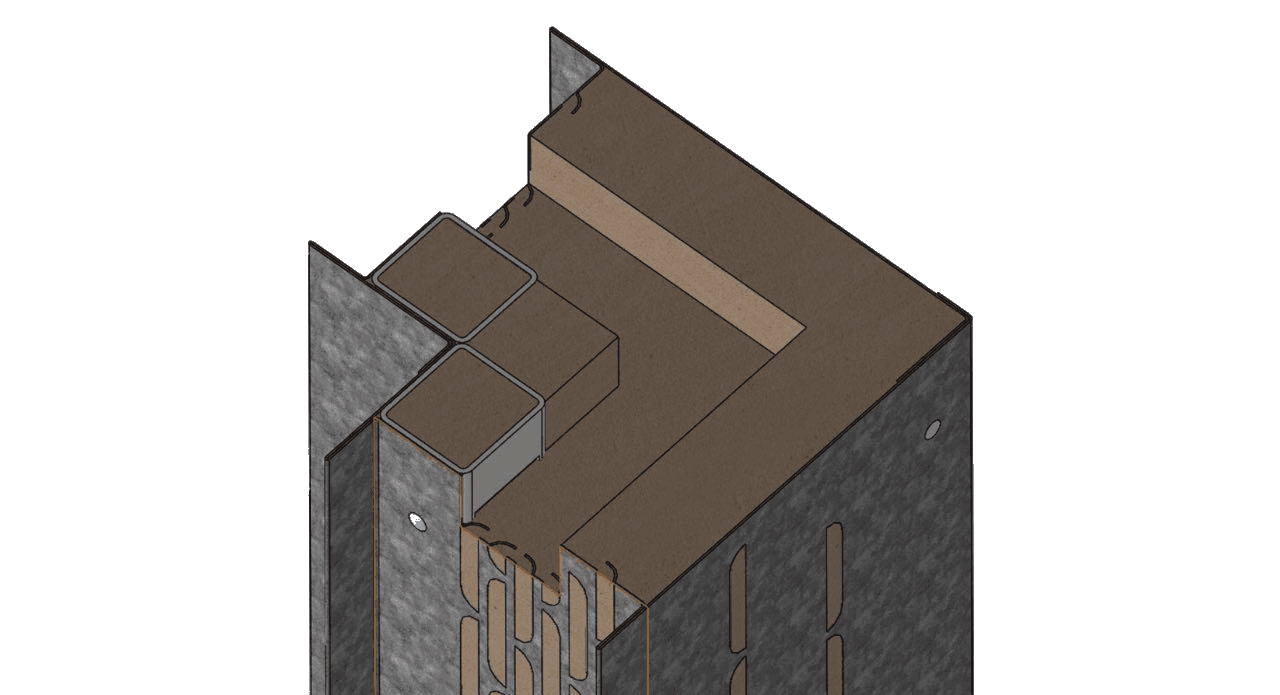

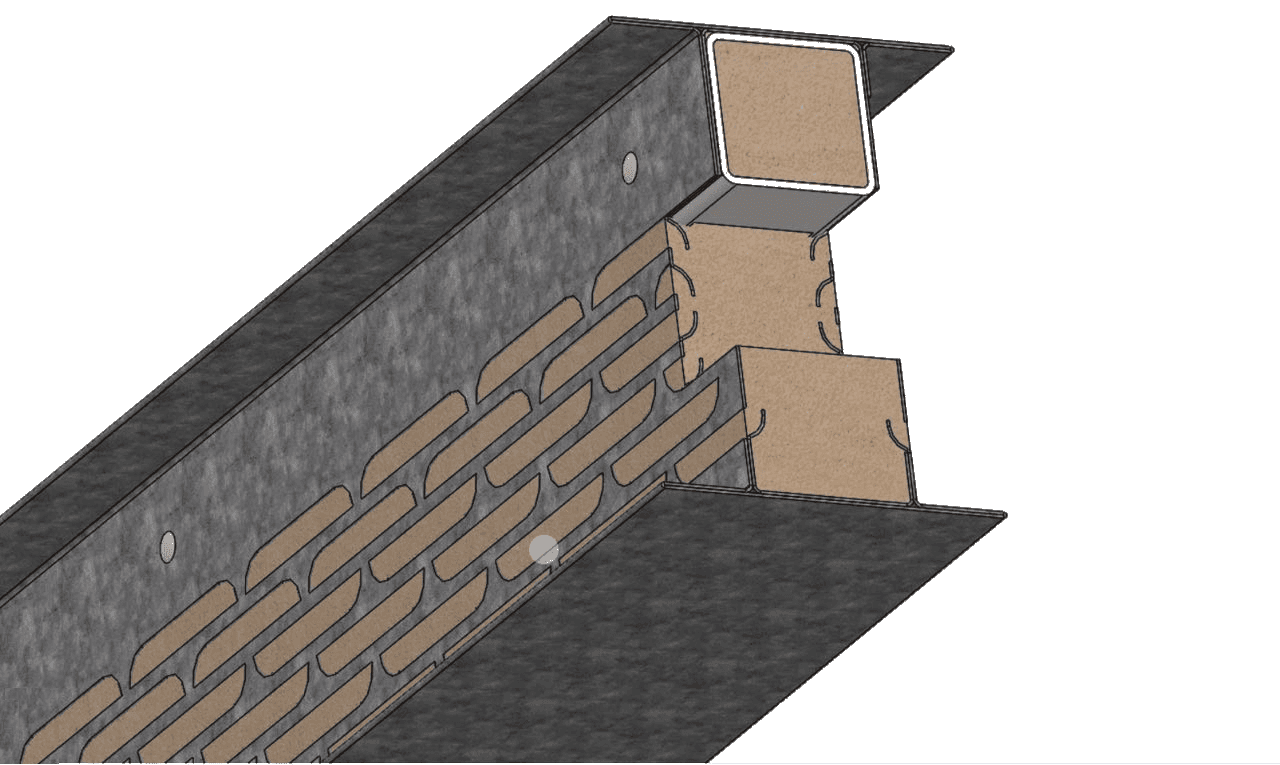

ThermoBEAM — is a patented structural beam designed for modular construction applications, where rigidity, thermal insulation, and rapid assembly are especially important. The beam is a closed steel profile with thermal perforations in a staggered pattern (in the form of "louvers"], the internal cavity of which is filled after assembly with high-density rigid polyurethane foam (PUR].
Key features
• Load-bearing capacity:
Configurable internal reinforcement system allows adapting the beam to design loads.
• Thermal insulation:
Continuous PUR layer eliminates thermal bridges throughout the beam thickness.
• Sound insulation:
The combination of perforated steel walls and polyurethane core improves acoustic comfort.
• Multifunctionality:
ThermoBEAM is used in building frames, facade panels, in window and door units.
• Industrial production:
Scalable technology with the ability to change the cross-section and length of the beam to meet project needs.
Benefits ThermoBEAM
• Comprehensive 4-in-1 solution: load-bearing structure + thermal insulation + sound insulation
+ ease of assembly;
• Does not require additional insulation layers;
• Lightweight design — less weight, simpler logistics;
• Full compatibility with other system modules KARKASYS:
PanelKIT, PanelCORE, ThermoFRAME etc.
ThermoBEAM - structure and characteristics
