Next-generation modular facade system
PanelKIT — is a patented facade system based on the principle of a panel kit: an assembled structural frame that can be insulated, finished and installed without the need for own high-tech production. The system is focused on decentralized production, scalability and integration with any architectural environment.

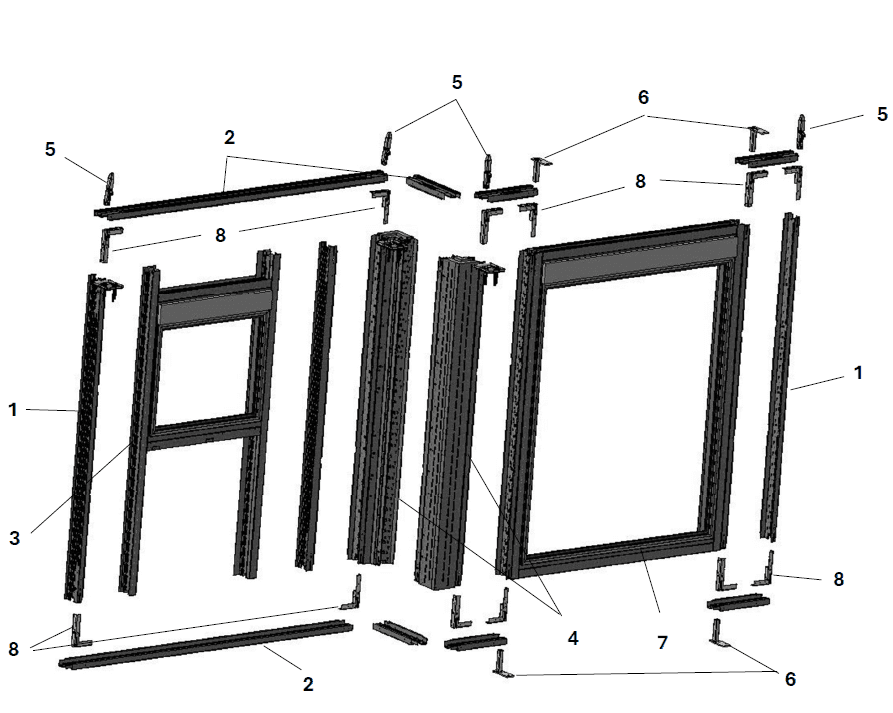

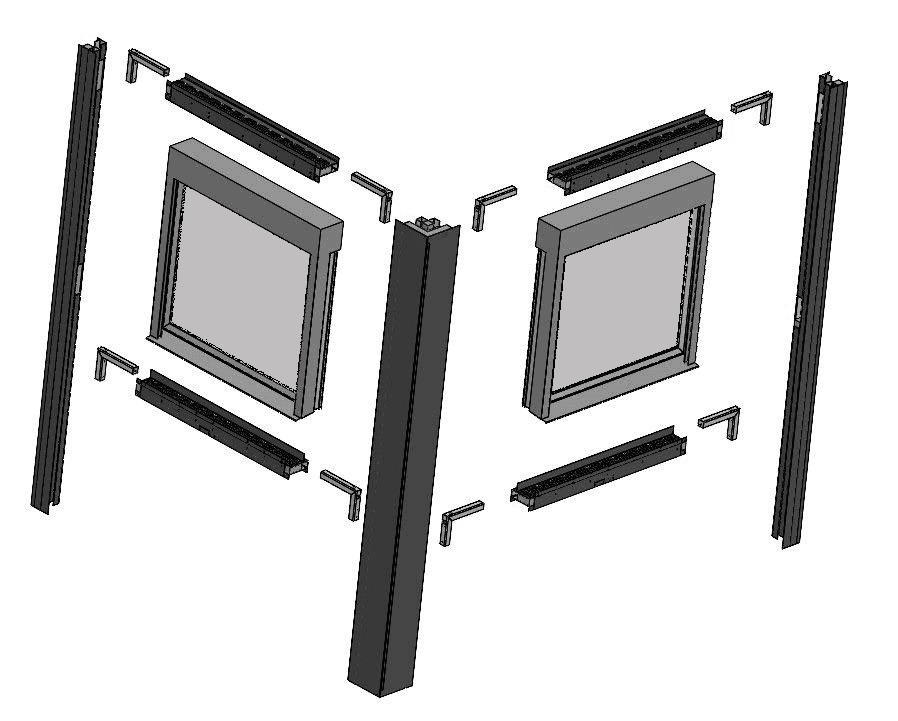

1 - Post thermal profile
2 - Groove thermal profile
horizontal
3,7 - Window and door pre-frame
4 - Thermal beam corner post

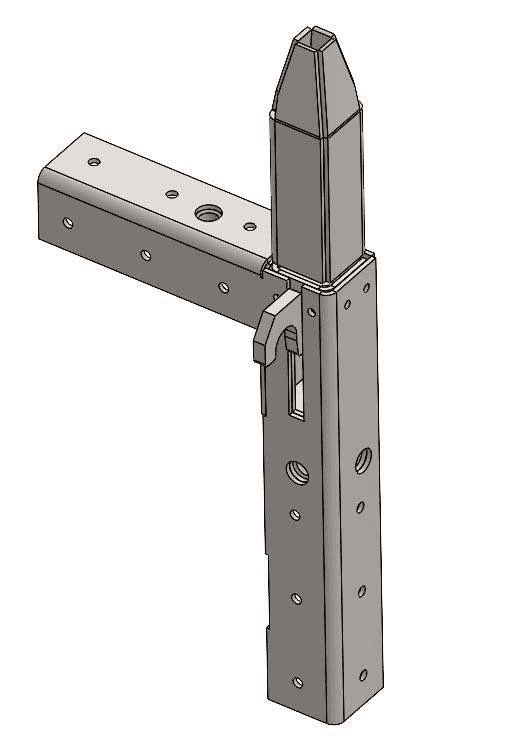

5 - Adjustable bracket

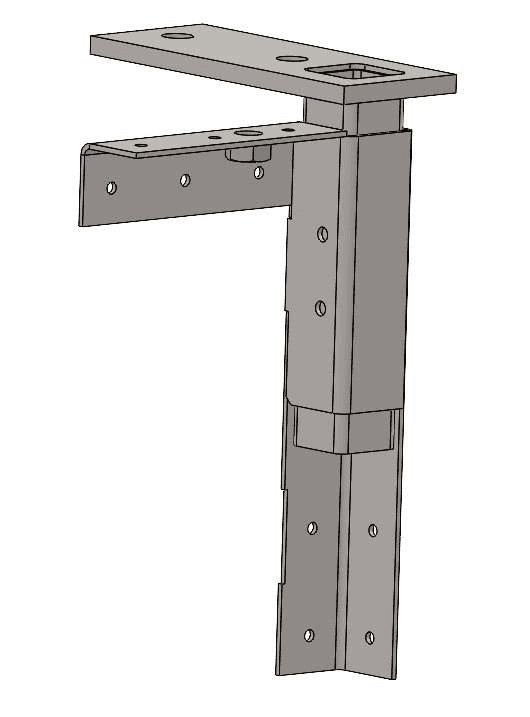

6 - Telescopic bracket
8 - Corner reinforcement bracket
Stud thermal profile
Groove thermal profile
horizontal

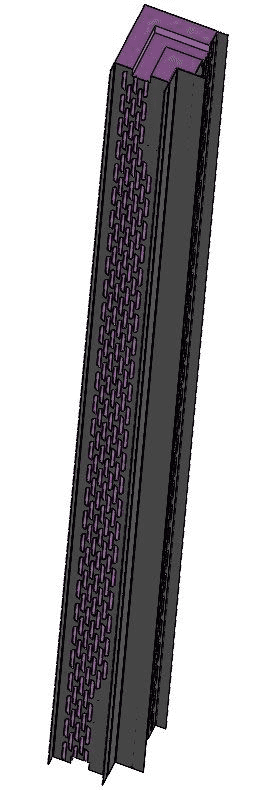

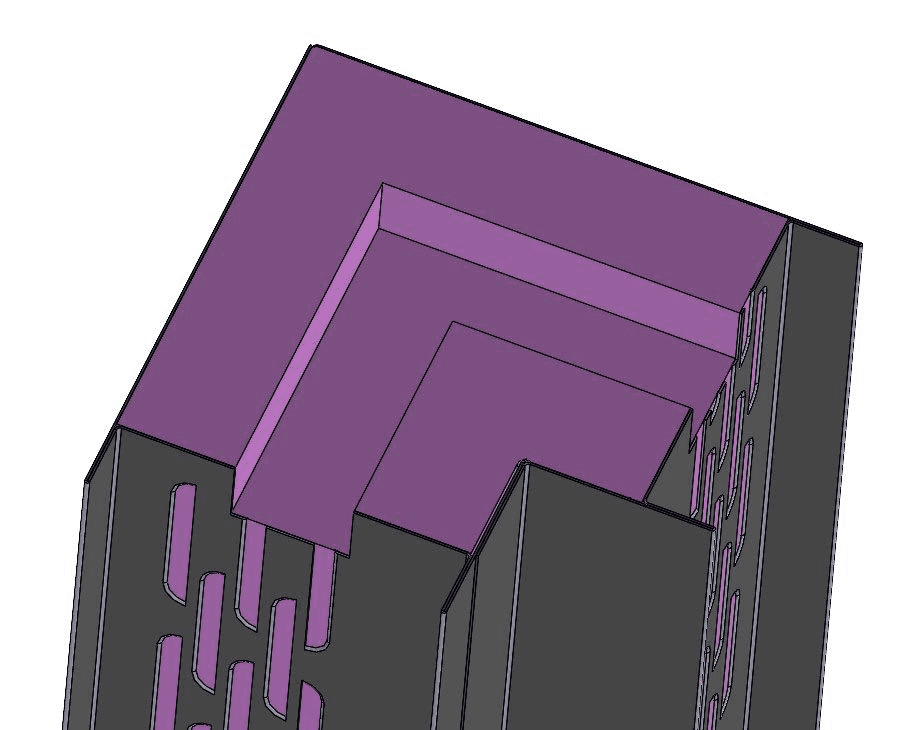

Corner post thermal beam

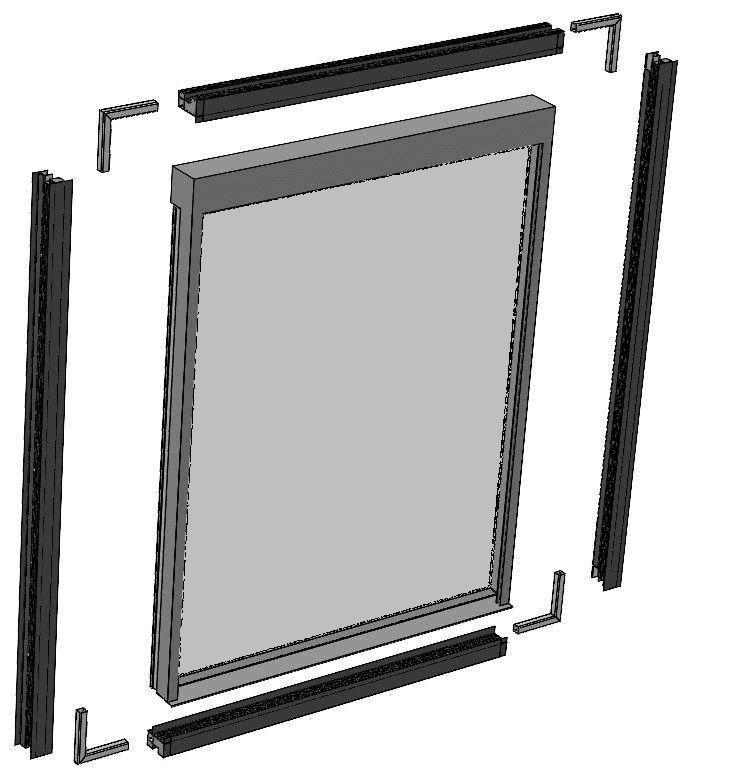

Glazing pre-frame
Corner pre-frame

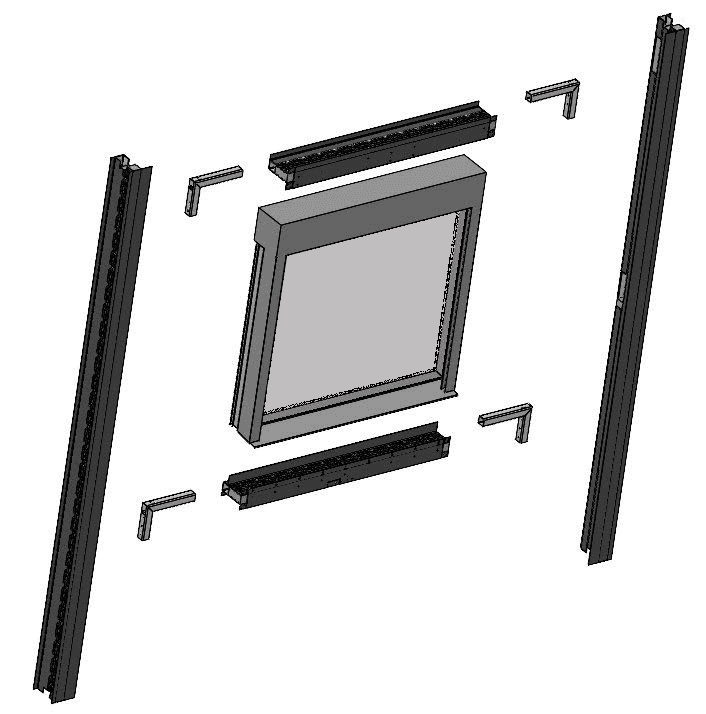

Standard window pre-frame
Structural system
PanelKIT consists of the following elements:
• Thermal beams: closed steel profile with thermal cuts ("louvres"], internal reinforcement and rigid PUR filling. Provides load-bearing capacity, thermal and sound insulation, including corner elements forming external and internal facade corners.
• Thermal profiles: perforated metal elements with thermal breaks that increase rigidity and reduce thermal conductivity.
• Ready-made pre-frames (windows and doors]: integrate into the frame without disrupting the thermal insulation circuit.
• Mounting connections: corner elements, hidden locks, adjustable brackets HOOK-BRACKET и TELEBRACKET.
Design features
• High geometric accuracy and panel strength;
• Variable placement of windows, doors, engineering systems;
• Full compatibility with window systems from any manufacturers;
• Possibility of installation in buildings with concrete, steel or modular frames.
• Complete set with an adapted ventilated facade subsystem.
Production model
PanelKIT uses a two-step approach:
1. Centralized production thermally insulated elements and precision frame;
2. Local assembly: insulation, finishing and installation — in a workshop or on a construction site.
Delivery formats
• In assembled form (ready frame];
• In flat pack — for transportation and assembly on site;
• Custom sizes and placement of embedded parts for the project.
Application and adaptability
PanelKIT suitable for:
• Residential, commercial and industrial buildings;
• Modular and rapid construction;
• Renovation and energy-efficient modernization;
• Use in remote and hard-to-reach regions.
The system easily adapts to any climatic conditions, architecture and building codes.

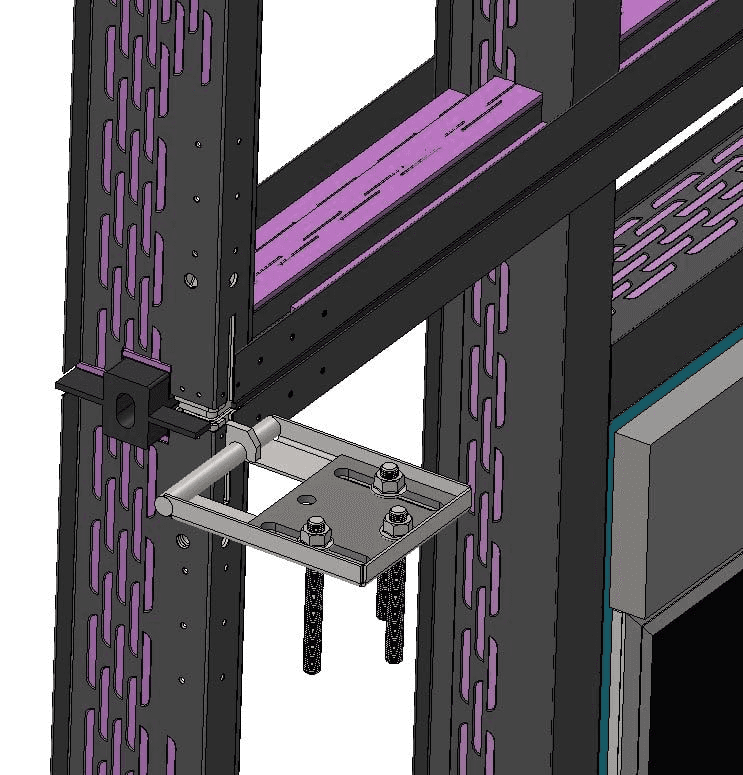

Horizontal panel joint
Fastening elements
Mounting and connections
• Hinged installation: using adjustable bracket HOOK-BRACKET (anchored to the upper slab];
• Inter-floor installation: using telescopic bracket TELEBRACKET;
• In the system CoreFRAME: using tongue-and-groove connection, in which grooves are formed in the upper and lower edges of the panel, and the tongue is the load-bearing beam of the building frame.
• Without welding, wet processes and heavy equipment.
Benefits PanelKIT
1. Industrialization without factory — production is possible in any region;
2. Finishing flexibility — any insulation, cladding and design solutions;
3. Time acceleration — quick installation without complex equipment;
4. Versatility — compatible with various types of load-bearing structures and window units;
5. Economy — reduction of logistics and labor costs;
6. Sustainability — waste reduction, support for local contractors, inclusion in social programs.
