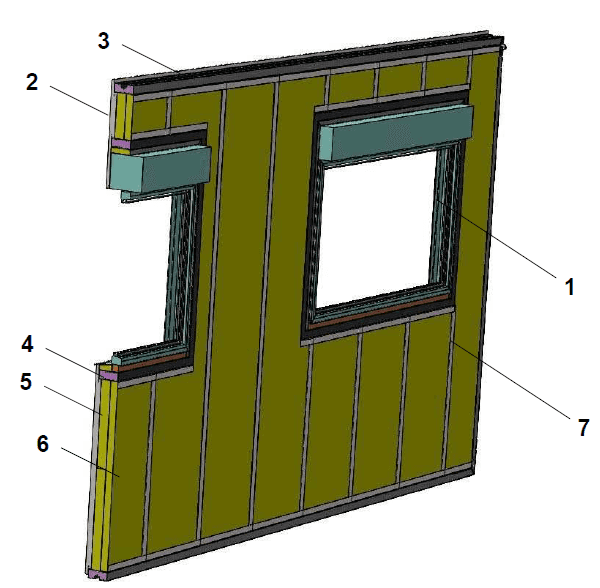

Window
UHPC concrete layer (ultra-high-performance concrete]
Thermal beams (load-bearing frame]
Thermal beam (pre-frame]
High-density thermal insulation layer
Low-density thermal insulation layer
Self-supporting structure of posts and
interior cladding profiles

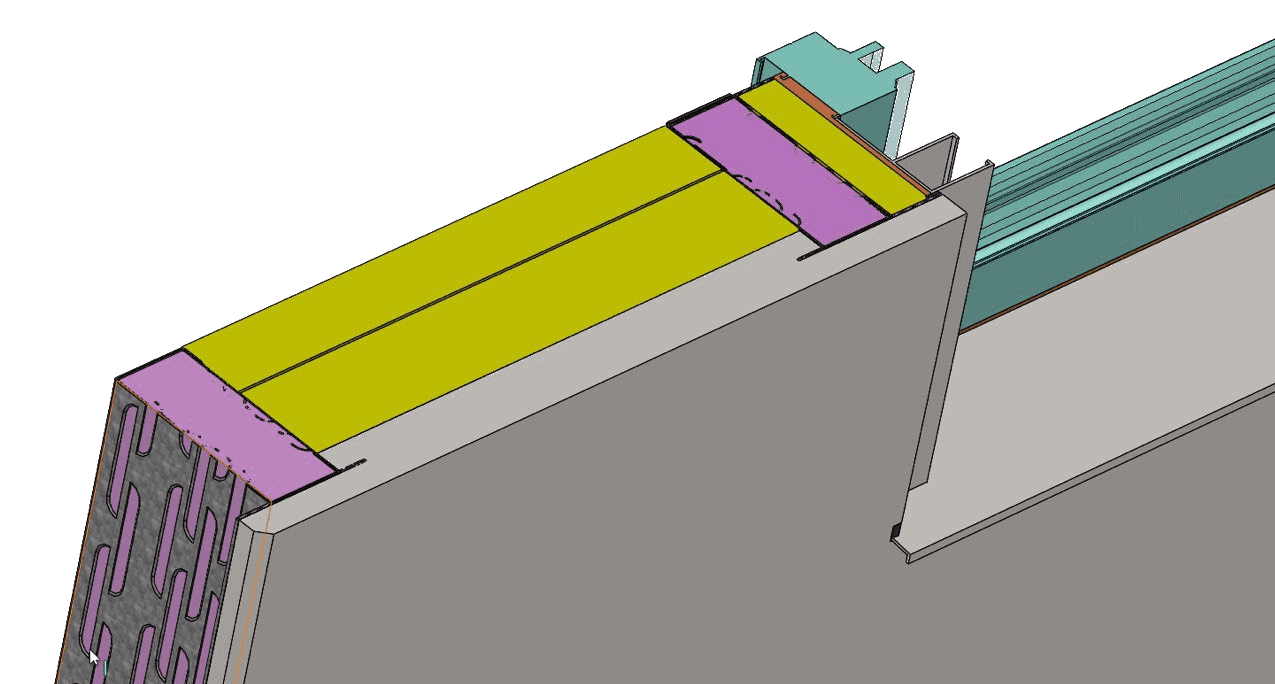

PanelCORE — two-layer reinforced concrete facade panel with thermal frame ThermoBEAM
Modular facade solution designed for use in load-bearing and enclosing structures where both strength and energy efficiency are critical. The panel consists of two layers of ultra-high-performance concrete (UHPC] and an integrated thermo-reinforced frame ThermoBEAM, performing simultaneously the functions of a structural stiffening rib and a thermal insulation barrier.
Key features
• Structural efficiency:
internal ribs from thermal beams ThermoBEAM provide load-bearing capacity, allowing to reduce the thickness of concrete layers.
• Thermal and sound insulation:
Built-in rigid polyurethane insulation (PUR] eliminates thermal bridges and improves acoustic insulation.
• Factory readiness:
panels are delivered with integrated insulation and window units, fully ready for installation on site.
• Reduction of weight and concrete consumption:
optimized cross-section allows reducing material volume while maintaining strength characteristics.
• Quick installation:
modular sizes and precise geometry ensure fast assembly without wet processes.
Technical specifications
Benefits
• Integrated solution: construction + thermal insulation + external finish.
• Flexible design — suitable both for industrialized, both for individual projects.
• Compatibility with window systems ThermoFRAME.
• Ideal for energy-efficient and low-carbon construction.
