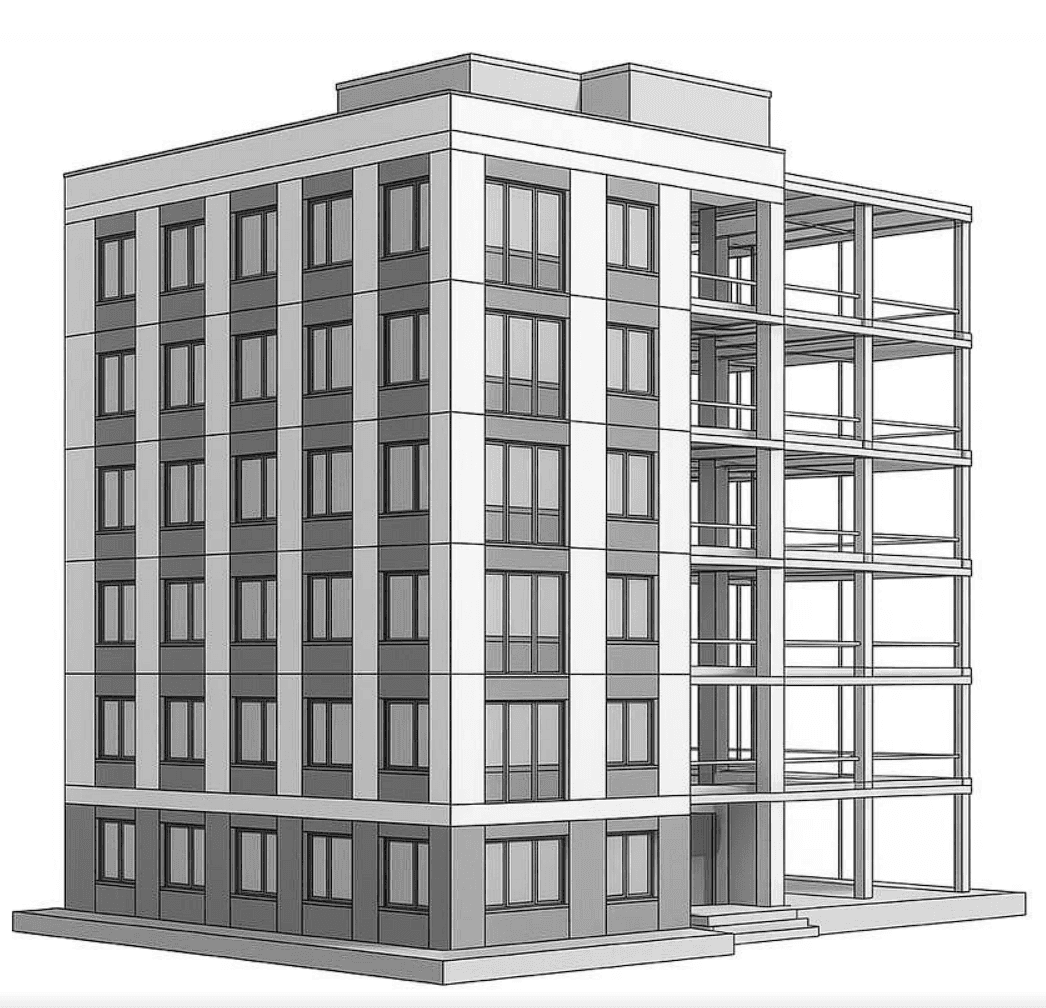

KARKASYS — is a new generation construction system that combines thermally insulated structural components into a single technological platform, fully ready for assembly and installation.
The system is designed for industrial housing construction, but easily adapts to individual projects and building renovation.
Key principles
• Modularity — all elements (posts, beams and floor slabs, enclosing structures] have standardized sizes and interfaces.
• Integration of functions — each part simultaneously carries a structural, thermal insulation and installation function.
• Industrialization — production of all elements takes place at the factory, including insulation, embedded parts and mounting nodes.
• Quick installation without welding and wet processes — the system is designed for on-site assembly without cement, bolted connections and welding.
• Versatility — all components are compatible with traditional reinforced concrete frames, all types of frame construction and LSFS systems.
System composition KARKASYS
CoreFRAME - load-bearing modular frame made of thermal beams ThermoFRAME
PanelKIT - kit for manufacturing facade panels with pre-frames and corner
elements
PanelCORE - load-bearing and curtain UHPC panels with integrated
with frame ThermoFRAME
ThermoFRAME - window and door pre-frames with thermal insulation and load-bearing
rigidity
FloorKIT - prefabricated floor slabs with insulation and concrete screed
ThermoBEAM - thermo-reinforced beam (key system element]
ThermoPROFILE - reinforced thermal profiles for openings, partitions, LSTC
FixKIT - hidden mounting nodes VU-CONNECT / HOOK-BRACKET / TELEBRACKET
Application flexibility
• The system can be used entirely, as a full-fledged module for a building, or
element by element, for example:
• Facades only PanelKIT — in reconstruction, in buildings with reinforced concrete frame
• Pre-frames only ThermoFRAME — in a building with reinforced concrete frame, in frame houses
• Floor slabs only FloorKIT — when replacing slabs in panel buildings.
Technical advantages
• Load-bearing capacity of elements is confirmed by calculations.
• Heat transfer coefficient: U ≤ 0.20 W/m²·K.
• Sound insulation: from 43 dB to 59 dB.
• Simplification of logistics and storage: all elements are standardized.
Mounting
• Connection of elements is carried out through:
• VU-CONNECT — concealed wedge lock (in CoreFrame frame],
• HOOK-BRACKET / TELEBRACKET — when installed in reinforced concrete frame.
Patent protection
All key system elements KARKASYS protected by patents, including:
• Thermal-reinforced beam (P202430020 / PCT],
• Panels PanelKIT (P202530411),
• Pre-frames ThermoFRAME (P202530376),
• Two-layer panel PanelCORE (P202530385),
• Connection node VU-CONNECT.
Application
• Multi-story residential and public buildings up to 7+ floors.
• Rapid-construction schools, offices, hotels.
• Facade renovation, energy modernization.
• Industrial buildings with accelerated commissioning.
